Interfaces

Especificações Técnicas

• CPU

  Intel® Celeron® Processor J4125

  – Total Cores: 4

  – Total Threads: 4

  – Burst Frequency: 2.70 GHz

  – Processor Base Frequency: 2.00 GHz

  – Cache: 4 MB

• GPU

  Intel® UHD Graphics 600

  – Graphics Base Frequency: 250 MHz

  – Graphics Burst Frequency: 750 MHz

  – DirectX Support: 12

  – OpenGL Support: 4.4

• RAM

  LPDDR4 RAM

  Maximum Frequency of 2400 MT/s

  – 2GB

  – 4GB

  – 8GB

• Storage

  1x M.2 M Key Connector for M.2 M Key 2280 NVMe SSD

• Display

  2x HDMI supporting displays up to 4Kp30 resolution

• Ethernet

  1x M.2 E Key Connector for WiFi / BT Module

  1x Gigabit Ethernet port

• USB

  2x USB3 HOST ports

  2x USB2 HOST ports

• Audio

  1x Headphone Jack with Microphone Input

• Connectivity

  1x RTC Battery Socket

  1x 4-Pin 1.25mm Fan Header

  1x 3-Pin Debug Header

  40-Pin Color GPIO Header

  – Up to 2x SPI

  – Up to 2x UART

  – Up to 2x I2C

  – Up to 16x PWM

  – Up to 8x PIO(Programmable IO)

• Button

  1x Power Button is used for powering on and off

  1x BOOTSEL Button is used to put the RP2040 into USB mass storage mode for firmware upload.

  1x Clear CMOS Button is used for recover BIOS settings

  1x User Button is to set up according to the user’s needs to achieve quick functions

• Software

  Windows 10 Pro

  Debian / Linux support

• Power_Requirements

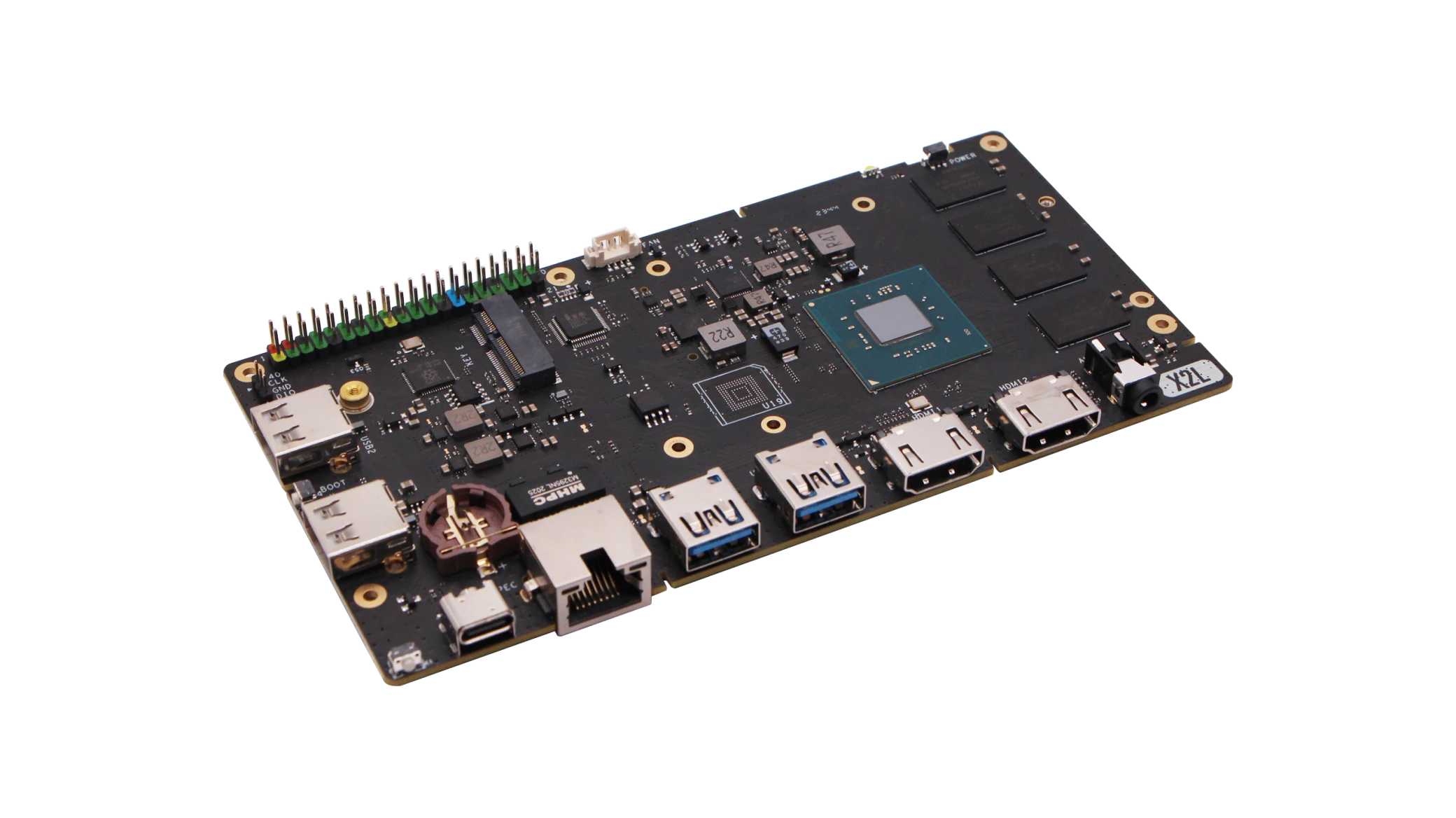

  The Radxa X2L supports the following power input:

  – USB Type-C PD Version 2.0 with 12V/2A.

  The recommended power source should be able to produce, at least, 18W without power consuming devices on USB 3 or 24W with full USB ports load.

• Operating_Conditions

  Recommended environmental temperature: 0 ~ 50°C

• Dimension

  155 mm x 80 mm
