Interfaces

Especificações Técnicas

• Version

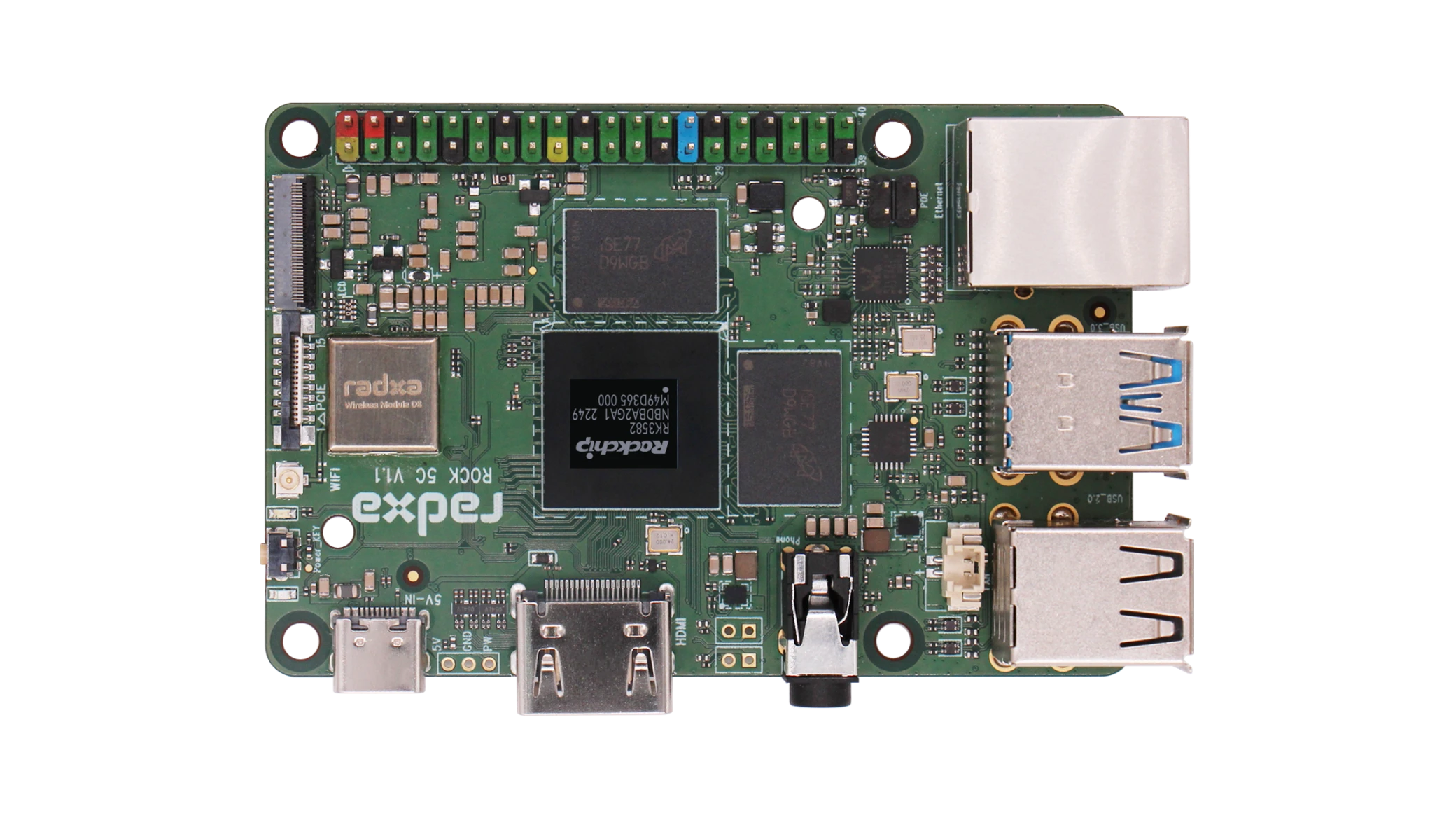

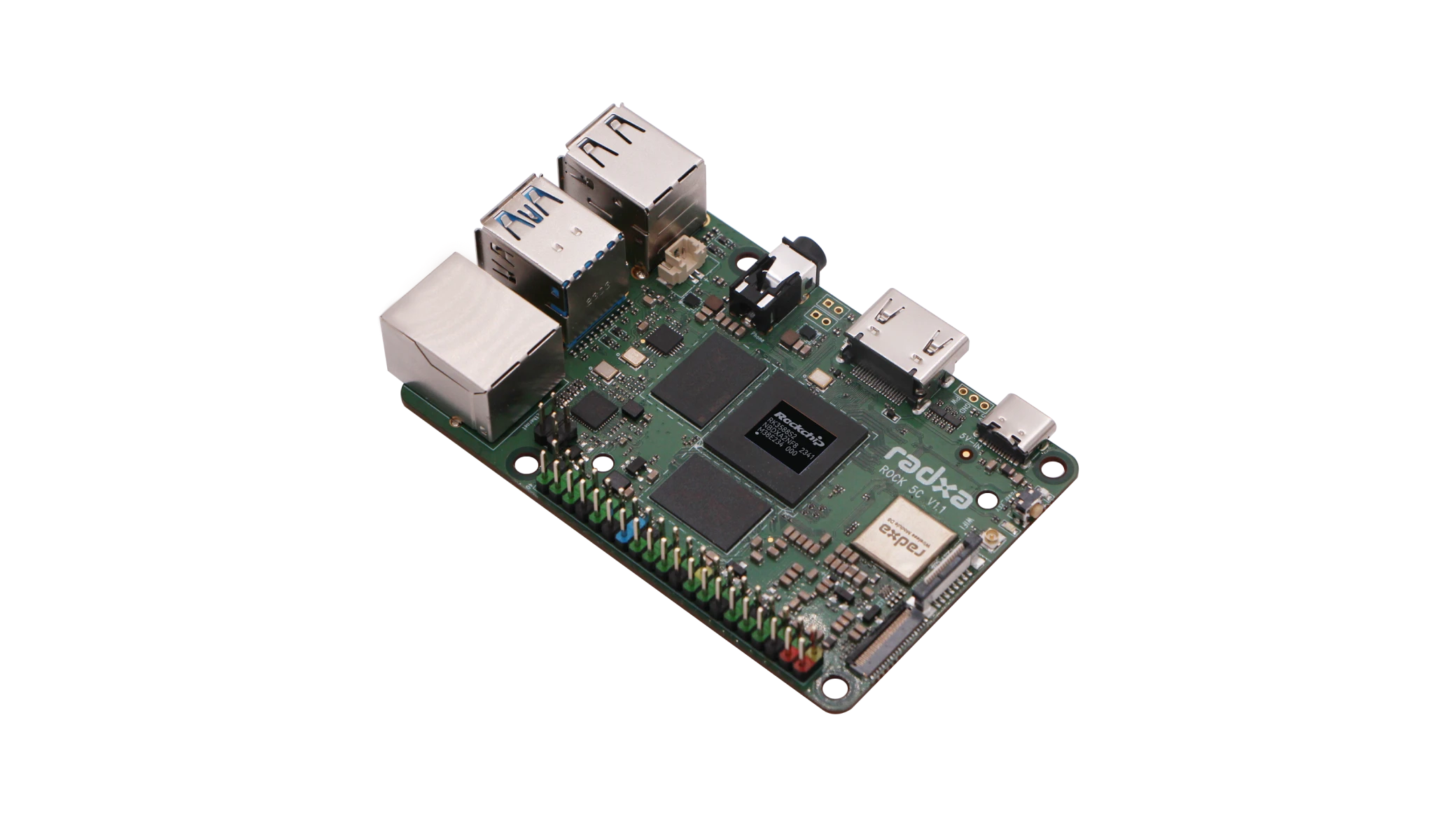

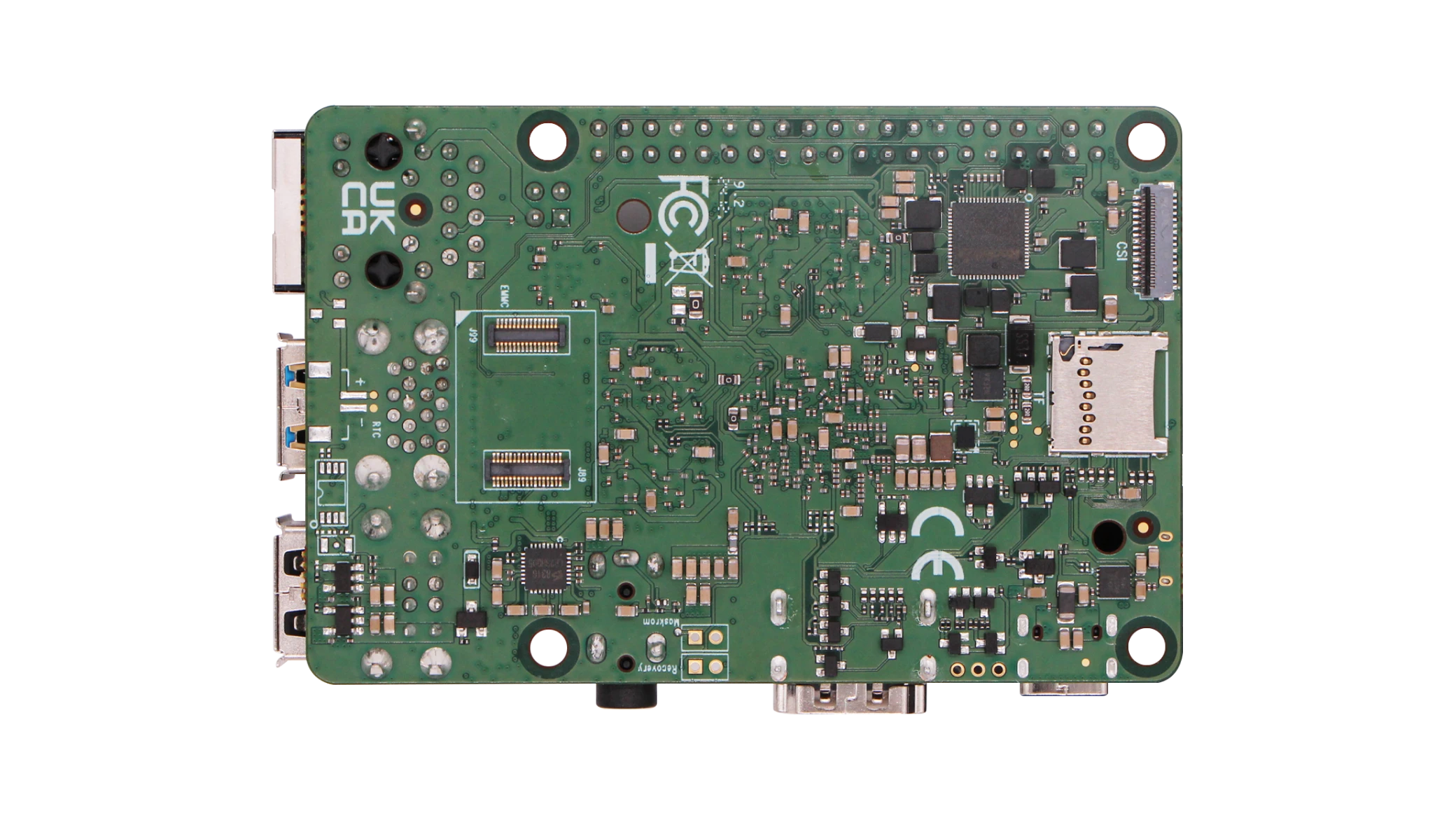

  Radxa ROCK 5C

  ROCK 5C Lite

• SoC

  Rockchip RK3588S2

  Rockchip RK3582

• CPU

  Arm Quad Cortex®‑A76 and Quad Cortex®‑A55 based on Arm®DynamIQ™ configuration

  Arm Dual Cortex®‑A76 and Quad Cortex®‑A55 based on Arm®DynamIQ™ configuration

• GPU

  Arm Mali™ G610MP4

  – OpenGL® ES1.1, ES2.0, and ES3.2

  – OpenCL® 1.1, 1.2 and 2.2

  – Vulkan® 1.1 and 1.2

  – Embedded high performance 2D image acceleration module

  No GPU

• NPU

  NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 6TOPs

  NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 5TOPs

• Multimedia

  H.265 / VP9 / AVS2 multivideo decoder up to 8K@60fps

  H.264 multivideo decoder up to 8K@30fps

  H.265 / H.264 multivideo encoder up to 8K@30fps

  H.265 / H.264 multivideo encoder up to 4K@60fps

• RAM

  LPDDR4x RAM Up to 32GB

• Storage

  1x eMMC Connector

  1x microSD Card Slot

  If you require SPI Flash, you will need to purchase the Radxa SPI Flash Module separately.

  If you need to expand the SATA, you will need to purchase the Radxa Penta SATA HAT additionally.

• Audio

  1x Headphone Jack with Microphone Input

• Display

  1x Standard HDMI 2.1 supporting up to 8Kp60

  1x MIPI DSI supporting up to 1080p60

  Able to provide 2 display outputs at the same time

• Camera

  1x 4‑lane MIPI CSI or 2x 2‑lane MIPI CSI

• USB

  2x USB 2.0 Type-A HOST ports

  1x USB 3.0 Type-A HOST port

  1x USB 3.0 Type-A OTG / HOST port

• Ethernet

  1x Gigabit Ethernet port (supports PoE with add‑on PoE HAT)

• Wireless

  WiFi 6 & BT 5.4 with External Antenna Connector

• Miscellaneous

  1x PWM fan connector

  1x Power button

• Power

  5V Only USB Type-C

• Operating System

  Radxa OS / Android

  Radxa OS

• Operating Conditions

  Recommended environmental temperature: 0 ~ 50°C

  Radxa ROCK 5C has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability

  For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit

• Dimension

  85 mm x 56 mm

• Compliance Certification

  FCC / CE
