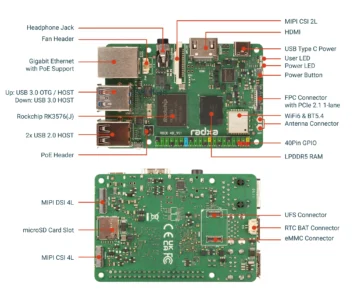

Interfaces

Especificações Técnicas

• SoC

  Rockchip RK3576 / RK3576J

• CPU

  Quad-core Cortex-A72 + Quad-core Cortex-A53

  ARMv8-A, TrustZone, Crypto Extensions

• GPU

  Arm Mali-G52 MC3

  – OpenGL ES 1.1 / 2.0 / 3.2

  – Vulkan 1.1

  – OpenCL 2.0

• NPU

  6 TOPS (INT4 / INT8 / INT16 / FP16 / BF16 / TF32)

  Supports TensorFlow / PyTorch / ONNX

  Tested on DeepSeek 1.5B

• Multimedia

  AV1 / AVS2 / VP9 / H.265 decode up to 8K@30fps or 4K@120fps

  H.264 decode up to 4K@60fps

  H.265 encode up to 4K@60fps

• RAM

  LPDDR5

  – 2GB

  – 4GB

  – 8GB

  – 16GB

• Storage

  1x eMMC 5.1 / UFS 2.0 module connector

  1x MicroSD Card Slot

• Display

  1x HDMI 2.1 up to 8K@60fps / 4K@120fps with CEC

  1x 4‑lane MIPI DSI

• Camera

  1x 4-lane MIPI CSI (can be split into 2x 2-lane)

  1x 2-lane MIPI CSI

• Ethernet

  1x Gigabit Ethernet port with PoE support (via optional HAT)

• USB

  1x USB3 HOST port

  1x USB3 OTG/HOST port

  2x USB2 HOST ports

• Audio

  1x 4-ring 3.5mm headphone jack with mic input

  Drives 32Ω headphones directly

• Connectivity

  40-pin 2.54mm GPIO header

  – Up to 5 x UART (2 with flow control)

  – Up to 3 x SPI bus

  – Up to 6 x I2C bus

  – Up to 1 x PCM/I2S

  – Up to 2 x SPDIF

  – Up to 7 x PWM

  – Up to 1 x CAN

  – Up to 1 x ADC

  – Up to 27 x GPIO

  – 2 x 5V DC power

  – 2 x 3.3V power

• PCIe

  1x PCIe 2.1 x1 via FPC connector

• Fan

  1x 2-pin 1.25mm PWM-controlled fan header

• Software

  Debian Linux

  Android 14

  Yocto

  Buildroot

  Rockchip RKNN SDK for AI model deployment

• Power Requirements

  5V input via USB Type-C (recommended 10–25W)

  5V input via GPIO pin 2 & 4

• Operating Conditions

  Commercial Grade (RK3576): 0°C ~ 60°C

  Industrial Grade (RK3576J): -40°C ~ 85°C

• Dimension

  87 mm x 58 mm x 20mm

• Lifecycle

  Supply guaranteed until September 2035
