Interfaces

Especificações Técnicas

• SoC

  Rockchip RK3399

• CPU

  Dual-Core Arm® Cortex™-A72 @ 1.8GHz and Quad-Core Arm® Cortex‑A53 @ 1.4GHz

• GPU

  Arm Mali™ T860MP4 GPU, supporting

  – OpenGL® ES 1.1 / 2.0 / 3.0 / 3.1 / 3.2

  – Vulkan® 1.0

  – Open CL® 1.1 / 1.2

  – DirectX® 11.1

• Multimedia

  H.265 / VP9 (HEVC) hardware decode (up to 4Kp60)

  H.264 hardware decode (up to 1080p60)

• RAM

  LPDDR4

  – 2GB

  – 4GB

• Storage

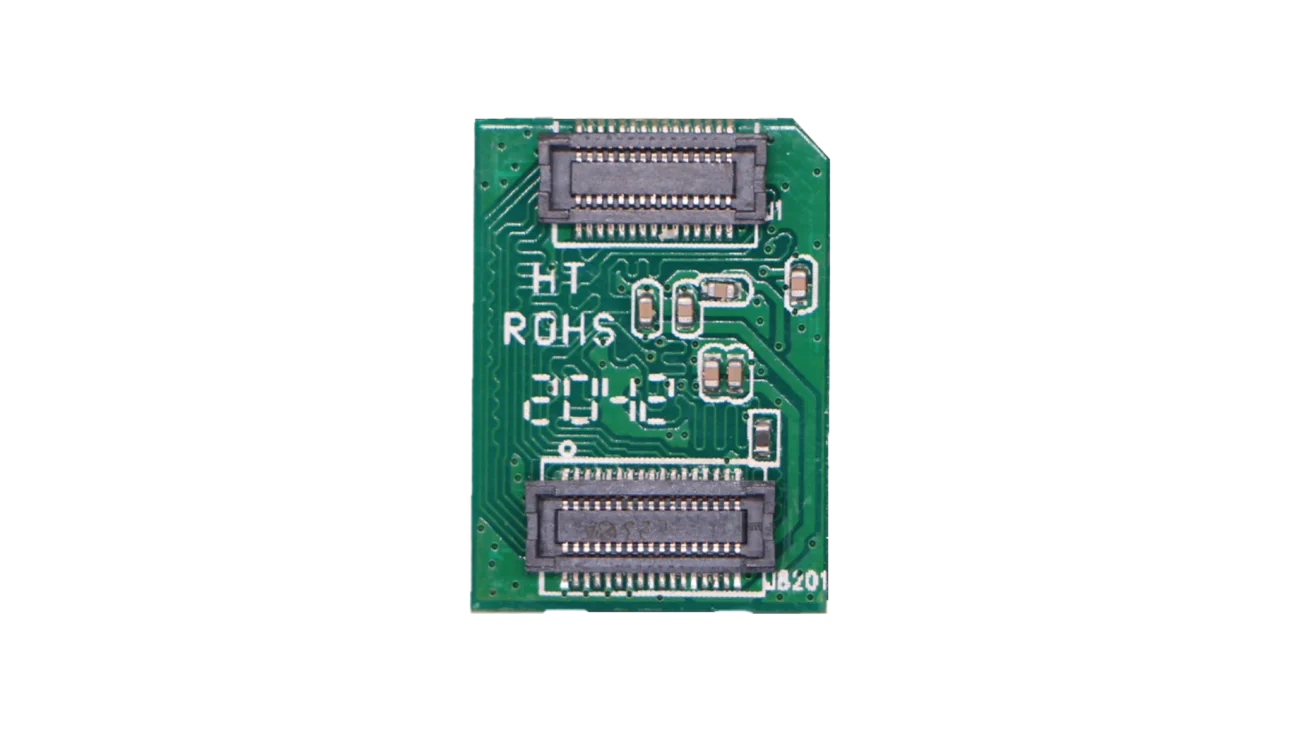

  1x eMMC connector

  1x M.2 M Key (4‑lane PCIe 2.1) supports NVMe SSD

  1x Micro SD Card Slot

• Display

  1x HDMI supporting displays up to 4Kp60 resolution

  1x 2‑lane MIPI DSI

• Camera

  1x 2‑lane MIPI CSI for camera

• Ethernet

  1x Gigabit Ethernet port without Power over Ethernet (PoE) support

• USB

  1x USB3 HOST port

  1x USB3 OTG port

  2x USB2 HOST ports

• Audio

  1x 4‑ring 3.5mm Headphone Jack

  HD codec that supports up to 24-bit/96KHz audio

• Connectivity

  40x color GPIO

  – 2 x UART

  – 2 x SPI bus

  – 3 x I2C bus

  – 1 x PCM/I2S

  – 1 x SPDIF

  – 2 x PWM

  – 1 x ADC

  – 6 x GPIO

  – 2 x 5V DC power in

  – 2 x 3.3V power pin

• Software

  Debian Linux support

  Android support

• Power Requirements

  The Radxa ROCK 4A supports various way of powering, smart power adapter as well as fixed voltage:

  – USB PD 2.0 Support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A

  – Qualcomm® Quick Charge™ 2.0 Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

  – Power adapter with fixed voltage from 6V to 24V on the USB Type C power port

  – 5V Power from the GPIO PIN 2 & 4

• Operating Conditions

  Recommended environmental temperature: 0 ~ 50°C

  Radxa ROCK 4A has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability.

  For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit

• Dimension

  85 mm x 56 mm
