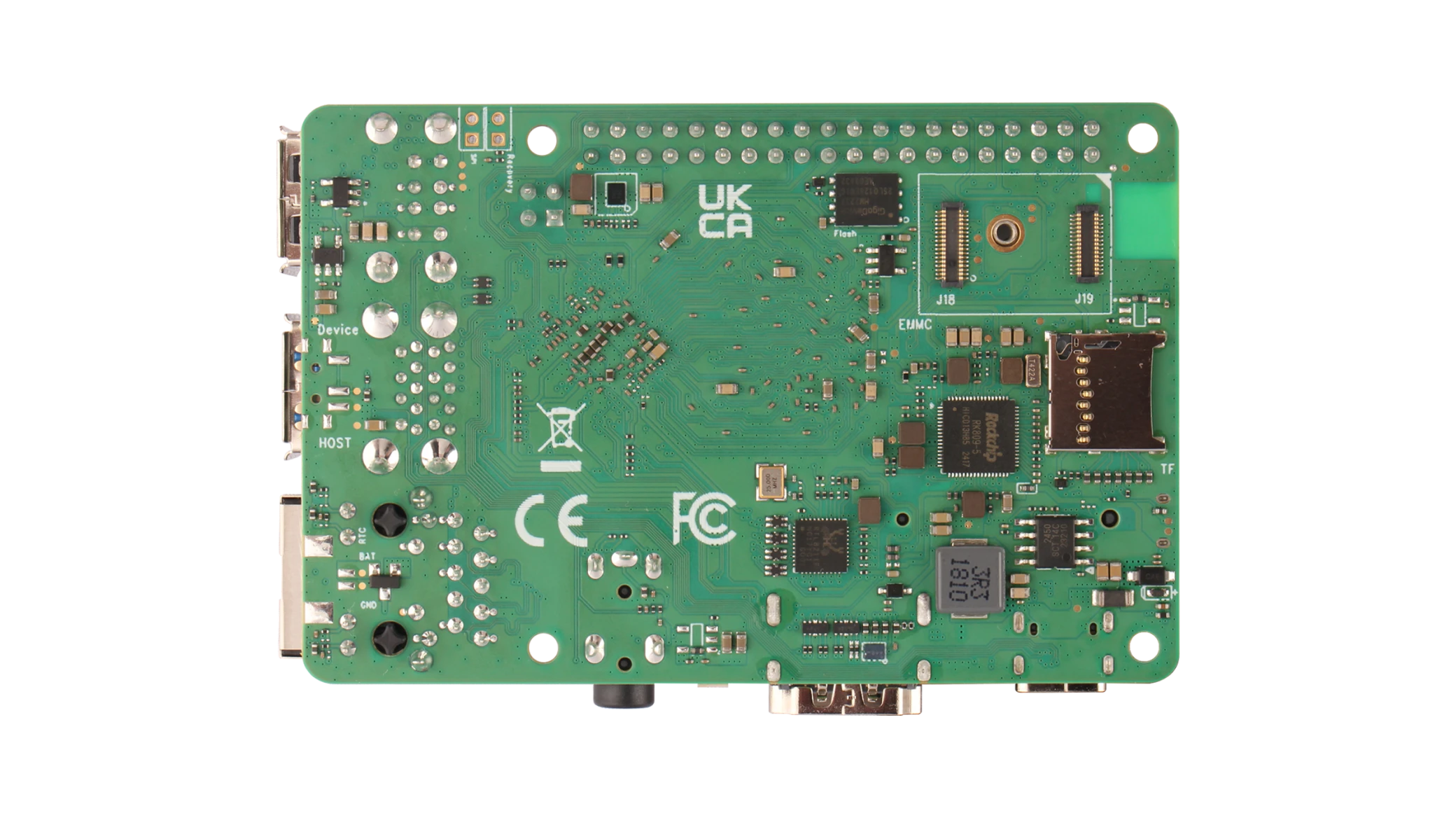

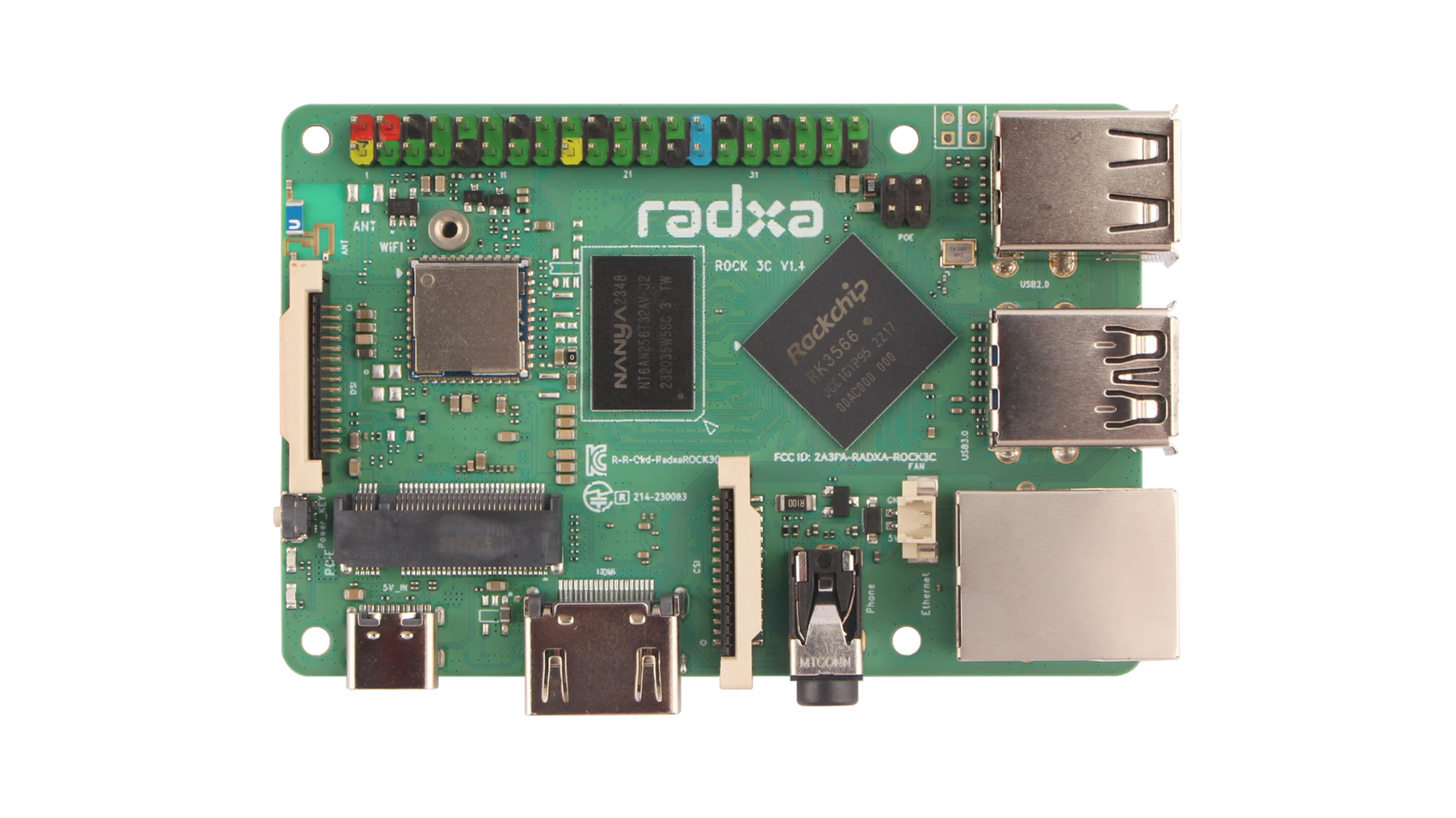

Interfaces

Especificações Técnicas

• SoC

  Rockchip RK3566

• CPU

  Quad-core Arm® Cortex®-A55 (Armv8) 64-bit @ 1.6GHz

• GPU

  Arm® Mali™-G52-2EE

  – OpenGL® ES 1.1 / 2.0 / 3.0 / 3.1 / 3.2

  – Vulkan® 1.1, OpenCL™ 2.1

• NPU

  1 TOPs @ INT8, support INT8, INT16, FP16, BFP16

  Support deep learning frameworks such as TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android™ NN, etc

• RAM

  32bit LPDDR4

  – 1GB

  – 2GB

  – 4GB

• Storage

  eMMC storage through the eMMC connector

  Micro SD Card through the Micro SD Card slot

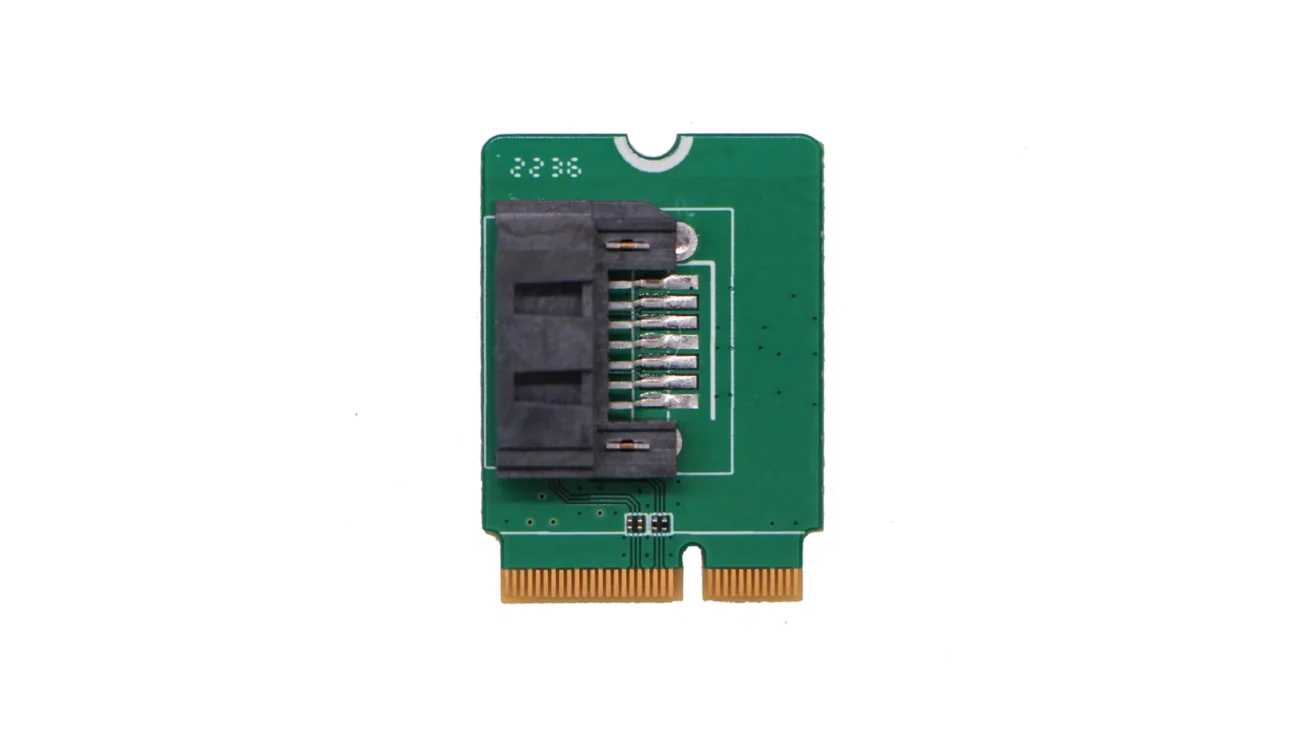

  NVMe SSD through the M.2 M Key connector(2230) or M.2 Extension Board(2242/2260/2280)

  SATA through the Radxa Penta SATA HAT

• Multimedia

  H.264 / H.265 decoder up to 4K@60fps

  H.264 / H.265 encoder up to 1080P@60fps

• USB

  2x USB2 HOST ports

  1x USB2 OTG / HOST port

  1x USB3 HOST port

• Audio

  1x 4‐ring 3.5mm Headphone Jack with Microphone Input

• Display

  Display via HDMI or MIPI DSI

  They can not work at the same time

• Camera

  1x 2-lane MIPI CSI for camera

• Ethernet

  1x Gigabit Ethernet port(supports PoE with add-on PoE HAT)

• Wireless

  WiFi5 & BT5

  WiFi6 & BT5.4

• Connectivity

  40x user GPIO supporting various interface options:

  up to 5 x UART

  1 x SPI bus

  up to 2 x I2C bus

  1 x PCM/I2S

  up to 6 x PWM

  up to 28 x GPIO

  2 x 5V DC power in

  2 x 3.3V power pin

• Power

  USB Type‑C® 5V

  5V Power from the GPIO PIN 2 & 4

• Operating Conditions

  Recommended environmental temperature: 0 ~ 50°C

  Radxa ROCK 3C has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability.

  For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit

• Dimension

  85 mm x 56 mm

• Compliance Certification

  FCC / CE / RCM / IMDA / WPC
