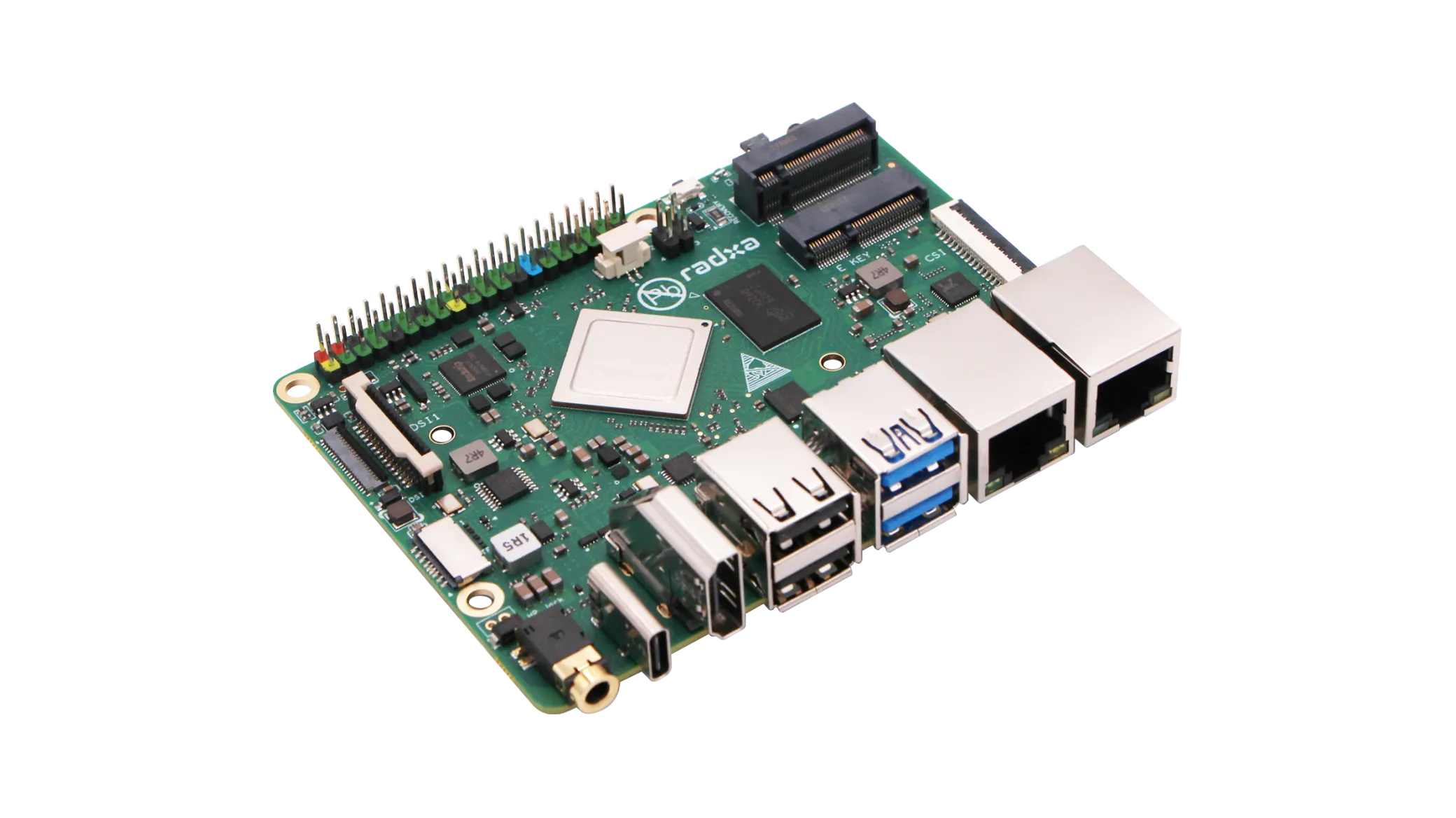

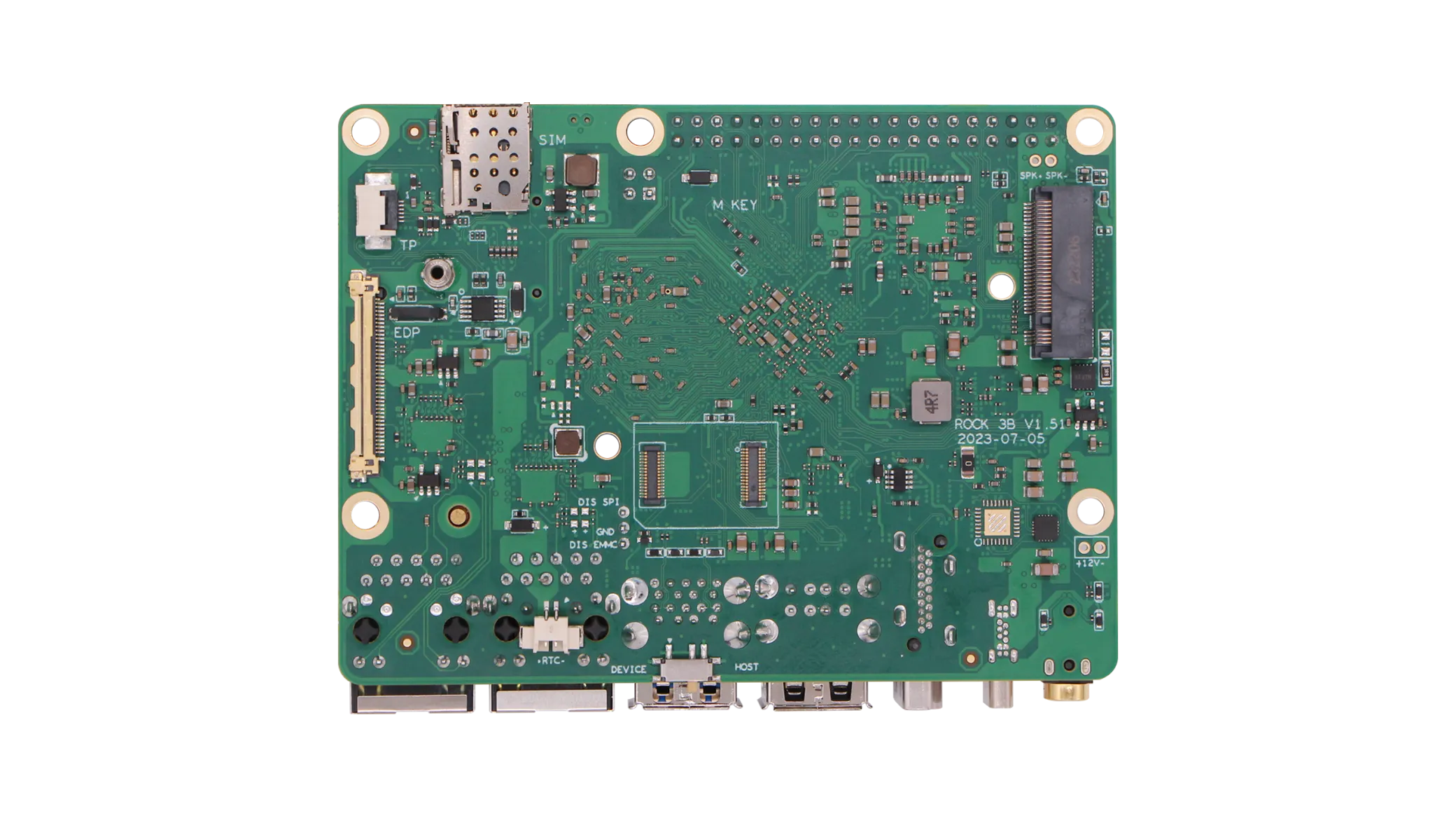

Interfaces

Especificações Técnicas

• SoC

  Rockchip RK3568(J)

• CPU

  Quad‑core Arm® Cortex™‑A55 (Armv8) 64‑bit @ 2.0GHz

• GPU

  Arm® Mali™ G52 GPU

  – OpenGL® ES 1.1/2.0/3.2

  – OpenCL™ 2.0

  – Vulkan® 1.1

• NPU

  1TOPs @ INT8/INT16/FP16/BFP16 MAC hybrid operation

  Support deep-learning frameworks: TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet

• Multimedia

  H.264 / H.265 / VP9 video decoder up to 4K@60fps

  H.264/H.265 video encoder up to 1080@60fps

• RAM

  2 / 4 / 8GB 32bits LPDDR4

• Storage

  1x eMMC connector

  1x Micro SD(TF) card slot

  1x M.2 M Key (2‑lane PCIe 3.0) supports NVMe SSD

  1x SPI Flash for Bootloader

• Display

  1x HDMI 2.0 supporting displays up to 4Kp60 resolution

  2x MIPI DSI (One 2‑lane MIPI DSI, One 4‑lane MIPI DSI)

  1x eDP port with touch panel support

• Camera

  1x 2-lane MIPI CSI for camera

• Ethernet

  2x Gigabit Ethernet port, one supports PoE with add-on PoE HAT

• Wireless

  1x M.2 E Key socket with SDIO, UART, USB interfaces

  Providing high speed WiFi/BT connectivity including WiFi6

  Standard M.2 Wireless module(SDIO type) are supported.

• Mobile Network

  1x M.2 B Key socket with PCIe, SATA, USB interfaces

  1x SIM Card socket provide high speed 4G cellualar access

  Standard M.2 3042 B Key modules are supported.

• USB

  1x USB3.0 HOST port

  1x USB3.0 OTG port

  2x USB2.0 HOST ports

• Audio

  1x 4‑ring 3.5mm Headphone Jack

• Connectivity

  40x color GPIOs

  – 5 x UART

  – 1 x SPI bus

  – 2 x I2C bus

  – 1 x PCM/I2S

  – 1 x CAN

  – 6 x PWM

  – 1 x ADC

  – 6 x GPIO

  – 1x USB 2.0

  – 2 x 5V DC power in

  – 2 x 3.3V power pin

• Software

  Debian Linux support

  Android 11 support

• Power Requirements

  Supports various power supply technologies including smart power adapter as well as fixed voltage:

  – USB PD 2.0 Support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A

  – Qualcomm® Quick Charge™ 2.0 Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

  – Power adapter with fixed voltage from 6V to 24V on the USB C power port

  – 5V Power from the GPIO PIN 2 & 4

• Operating Conditions

  Recommended environmental temperature: 0 ~ 50°C

  Rockchip ROCK 3B has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability

  For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit

• Dimension

  100mm x 75mm

• Compliance Certification

  FCC / CE
