Interfaces

Especificações Técnicas

• Features

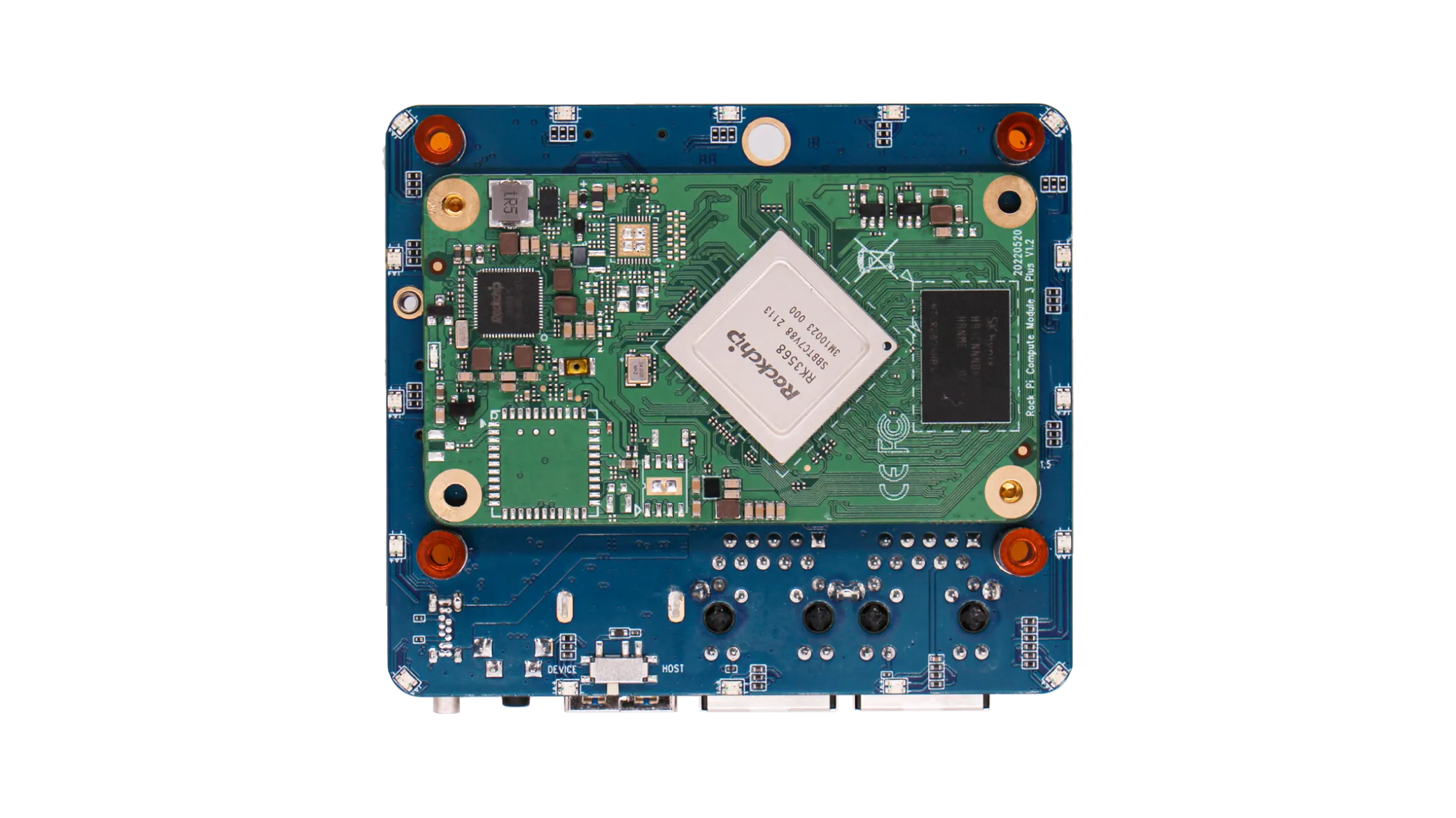

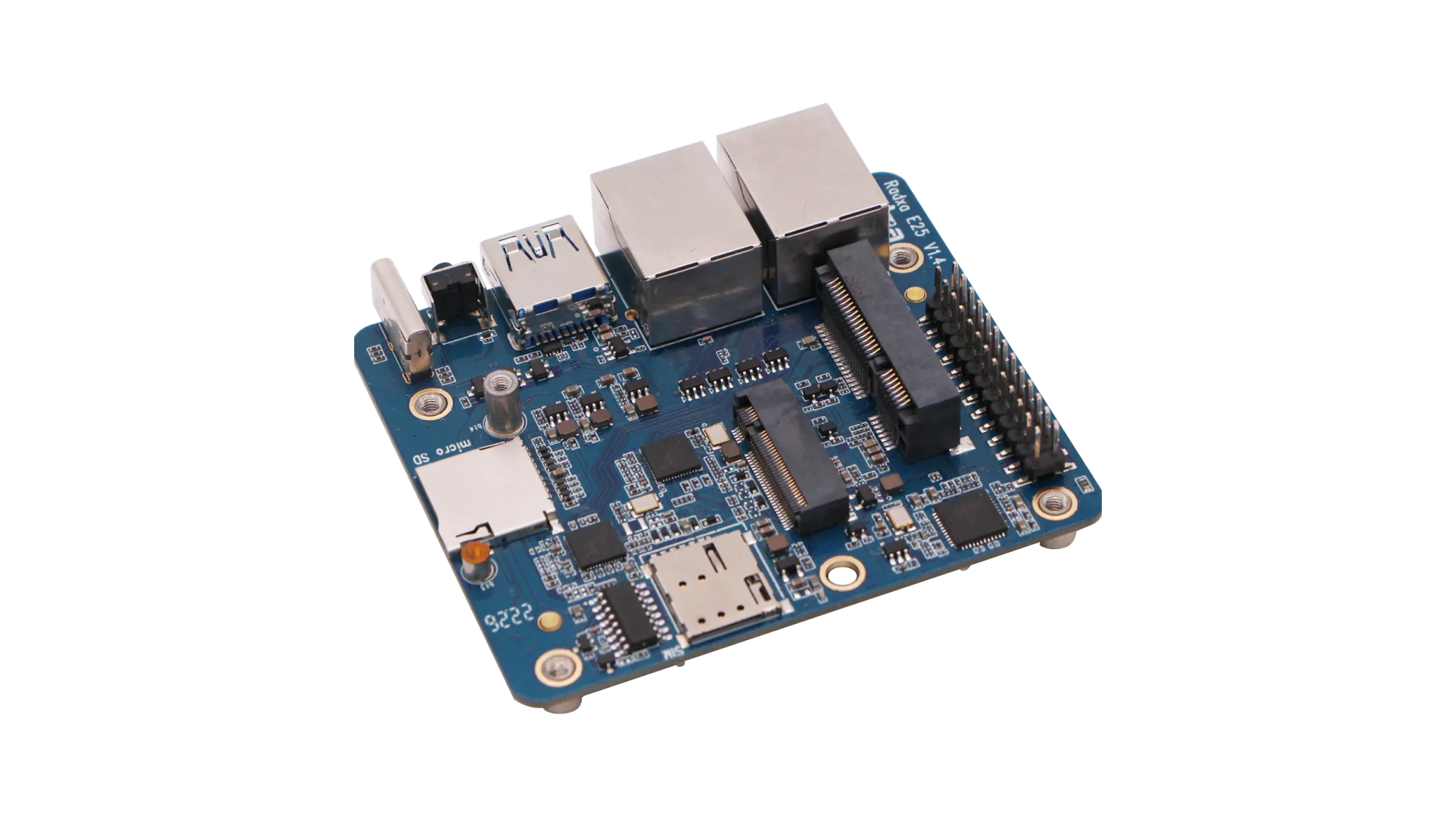

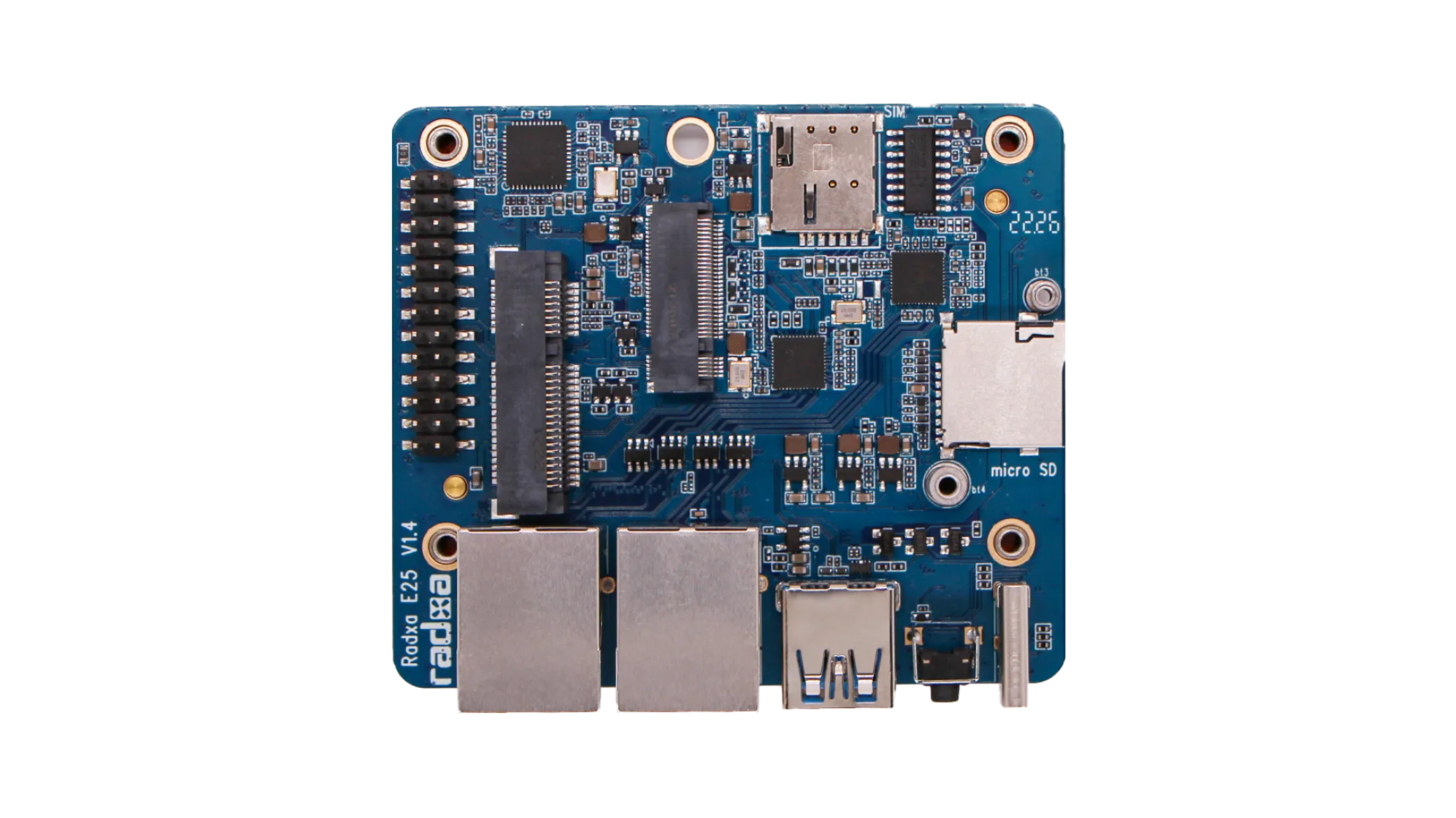

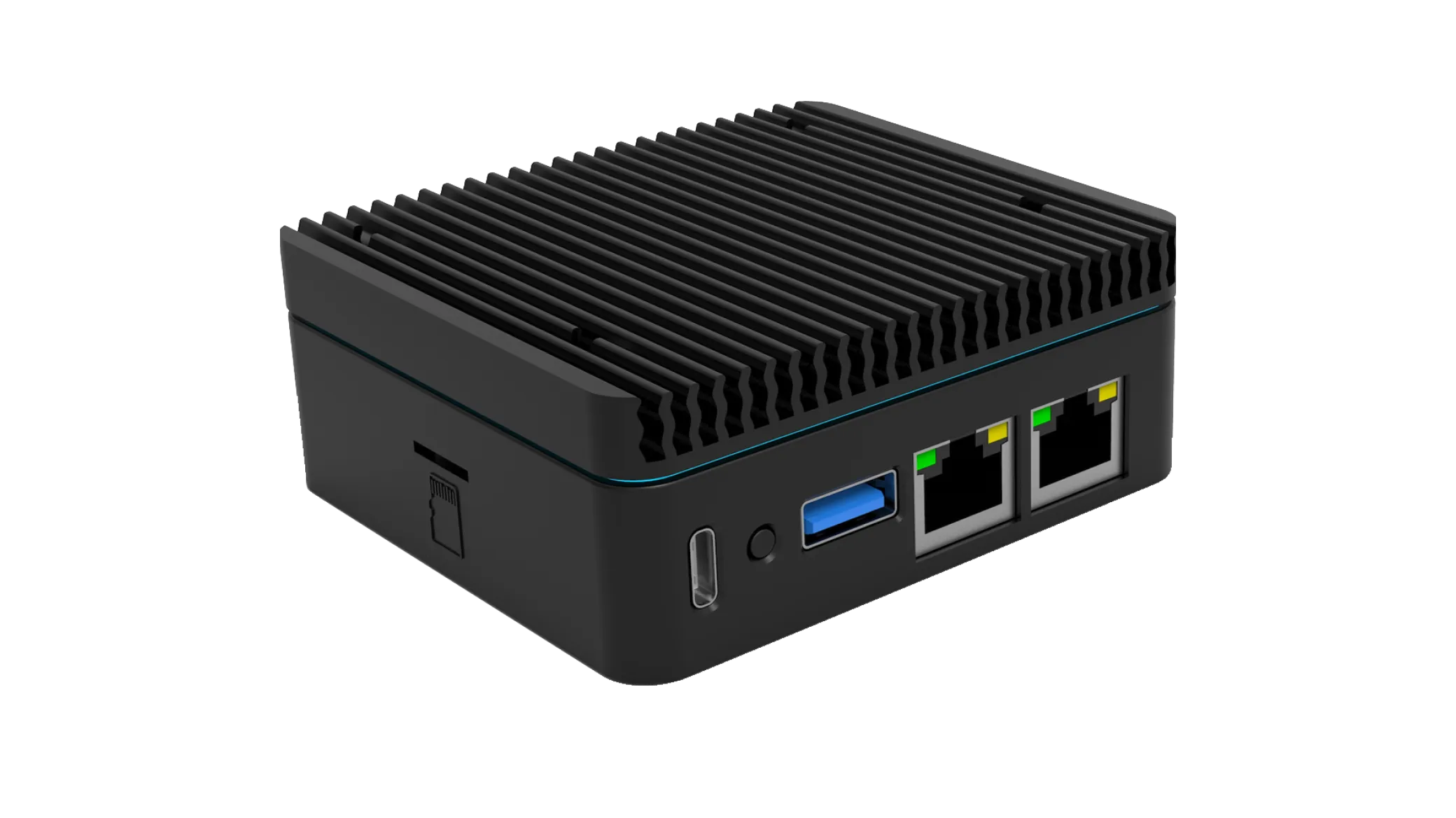

  Upgradeable SoM and carrier board design with easy to assemable case and heatsink

• SoC

  Rockchip RK3568

• CPU

  Quad core Cortex‑A55 (Arm v8) 64‑bit SoC @ 2.0GHz

• GPU

  Mali G52 GPU

  – OpenGL ES 3.2

  – OpenCL 2.0

  – Vulkan 1.1

• NPU

  1Tops NPU with RKNN Toolkit support

• RAM

  32bit LPDDR4

  – 4GB

  – 8GB

  – 16GB

• Storage

  Offers an internal high speed onboard eMMC for OS and data storage(on the SoM)

  This allows booting from SATA or USB drive

  1x SD Card for storage or OS

• Ethernet

  2x 2.5G Ethernet

• Cellualar

  1x Nano SIM card slot

  Expansion via M.2 B Key and mini PCIe interface for 4G mobile network

• M.2 B Key connector

  With USB, SATA and SIM card interfaces, supporting 4G LTE module or M.2 2242 SATA SSD

• mini PCIe connector

  With PCIe 2.0, USB and SIM card interfaces, supporting WiFi AP cards, 5G mobile network modules

• USB

  1x USB3 Type A 5Gbps OTG ports

• Connectivity

  up to 3 x UART

  up to 2 x SPI bus

  1 x I2C bus

  1 x PCM/I2S

  1 x CAN

  1 x ADC

  2 x 5V DC power pin

  2 x 3.3V power pin

  up to 6 x PWM

  up to 17 x GPIO

• Power Requirement

  Support power input from USB-C with a voltage of 5V, the suggested power source capability is 5V/2A without perpherials and 5V/4A with all the perpherials connected

  Support external 5V Power from the GPIO PIN 2 & 4

• Software

  Armv8 Instruction Set

  Debian Linux Server support

  Hardware access/control library for Linux

• Operating Conditions

  Recommended environmental temperature: 0 ~ 50°C

  The Radxa E25 employs an internal governor that dynamically adjusts CPU clock speed and voltage based on workload to manage thermal output, ensuring the CPU temperature stays below 85°C

• Compliance Certification

  CE / FCC
