Diagrama de Blocos

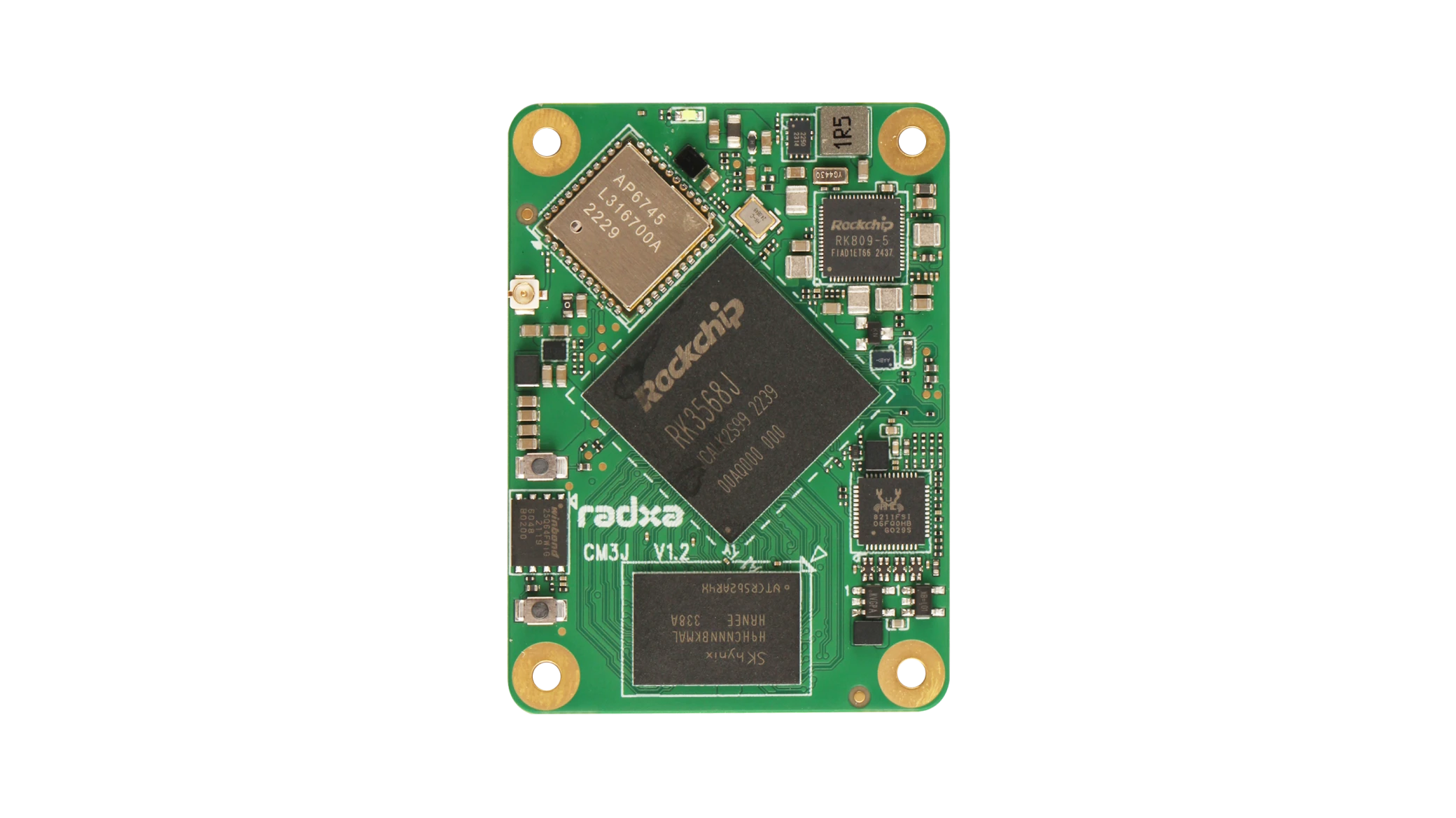

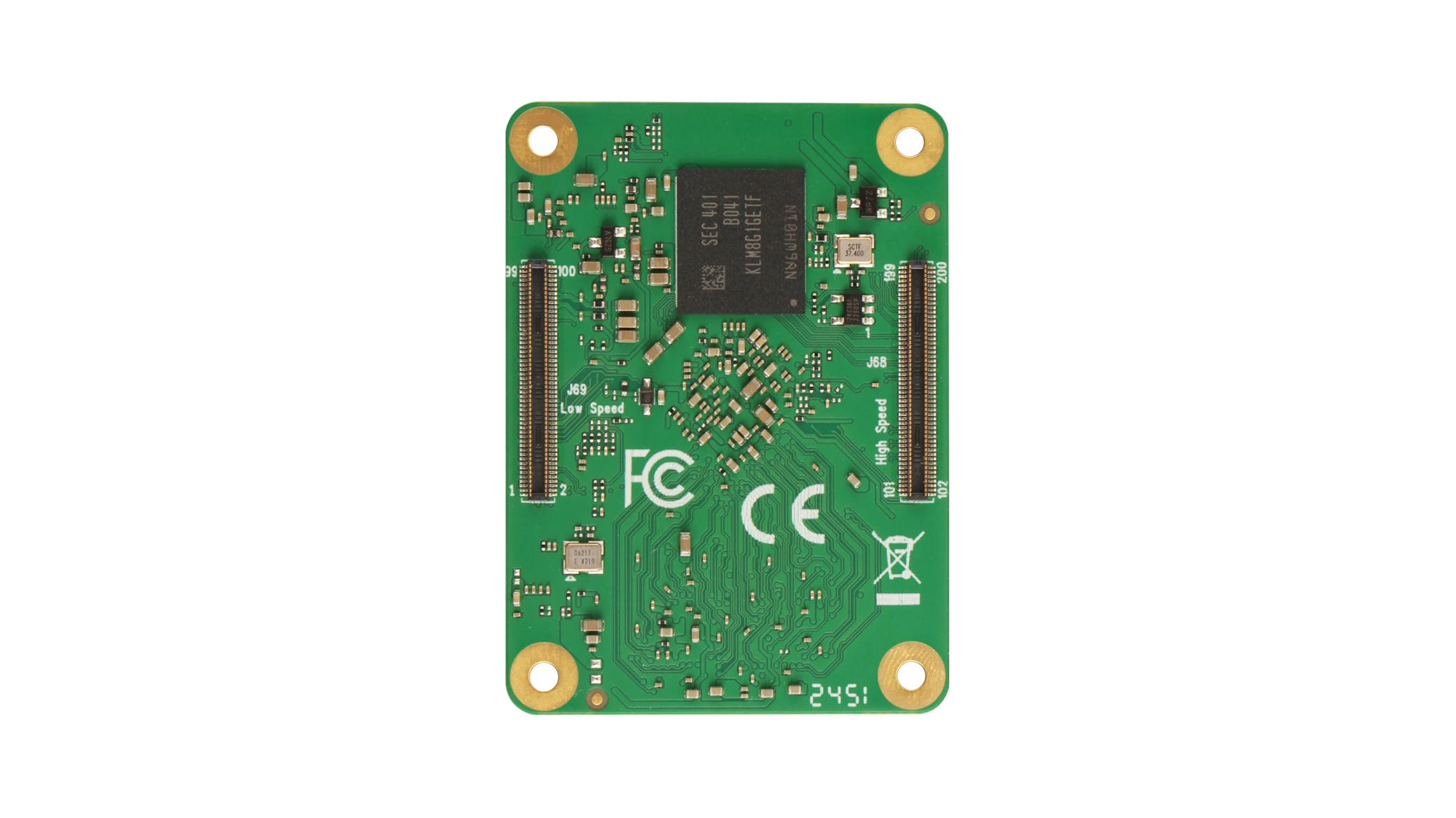

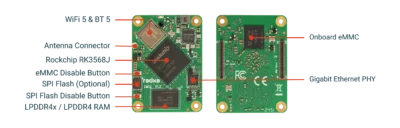

Interfaces

Especificações Técnicas

• SoC

  Rockchip RK3568J

• CPU

  Quad‑core Arm® Cortex™‑A55 (Armv8) 64‑bit @ 2.0GHz

• GPU

  Arm® Mali™ G52 GPU

  – OpenGL® ES 1.1 / 2.0 / 3.2

  – OpenCL™ 2.0

  – Vulkan® 1.1

• NPU

  NPU supporting INT8 / INT16 / FP16 / BFP16, computing power is up to 1TOPs@INT8

• Codec

  H.265 / H.264 and VP9 video decoder up to 4K@60fps

  H.264 / H.265 video encoder up to 1080P@100fps

• RAM

  LPDDR4/LPDDR4x 2/4/8GB

• Storage

  onboard eMMC

  SPI Flash for bootloader

  Supports SDMMC interface for data storage and OS booting using SD cards

• Wireless

  IEEE 802.11 b/g/n/ac Wireless LAN (Wi-Fi 5) with external antenna connector

  BT 5.0 with BLE

• Ethernet

  1x Onboard Gigabit Ethernet PHY

• Video Output

  1x HDMI TX up to 4096X2160@60Hz

  1x 2‑lane MIPI DSI for MIPI LCD

  1x 4‑lane MIPI DSI for MIPI LCD

  1x LVDS 4-lane(muxed with MIPI DSI0)

• Video Input

  1x 4‑lane MIPI CSI RX or 2x 2‑lane MIPI CSI RX

• USB

  1x USB 2.0 OTG / HOST Interface

• PCIe

  1x PCIe 2.0 1‑lane Interface

• Connectivity

  UART

  SPI

  I2C

  CAN

  I2S

  GPIO

• Connector

  2 x 100 pins B2B connector

• Operating Conditions

  Recommended environmental temperature: -40°C ～ 85°C

• Software

  Debian

• Dimension

  55 mm × 40 mm
