Diagrama de Blocos

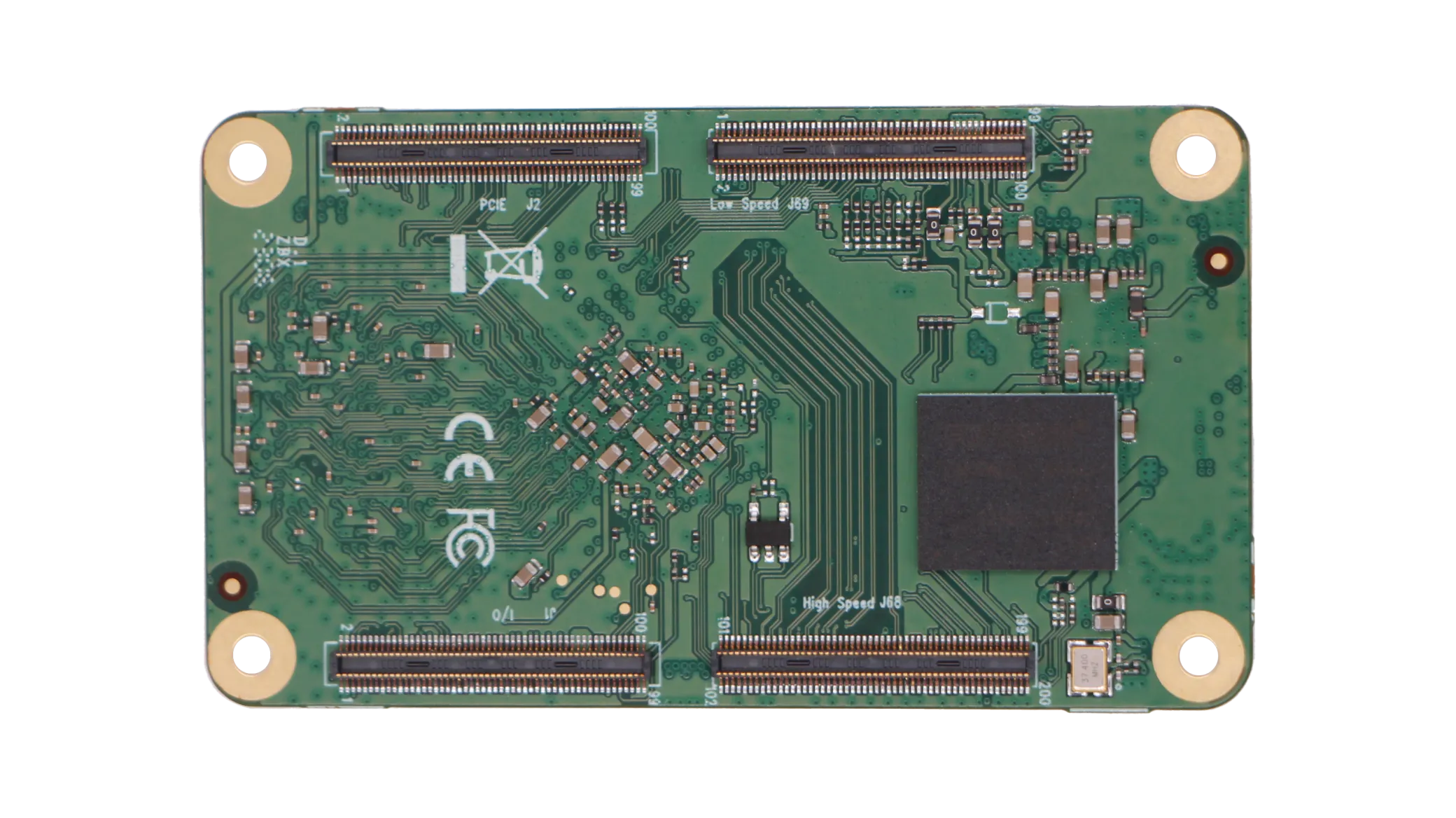

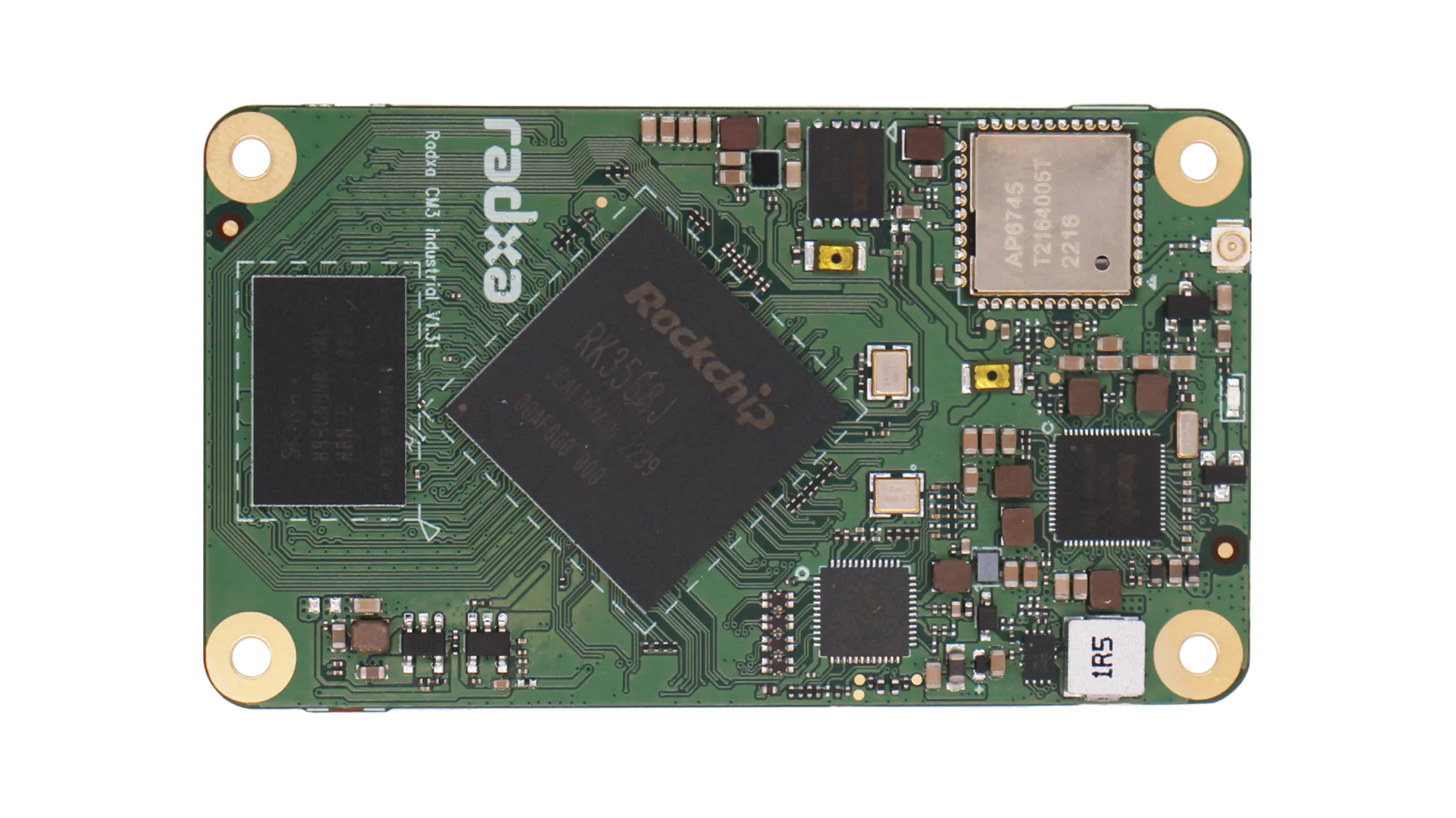

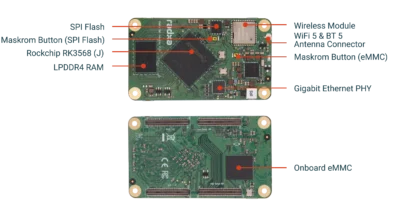

Interfaces

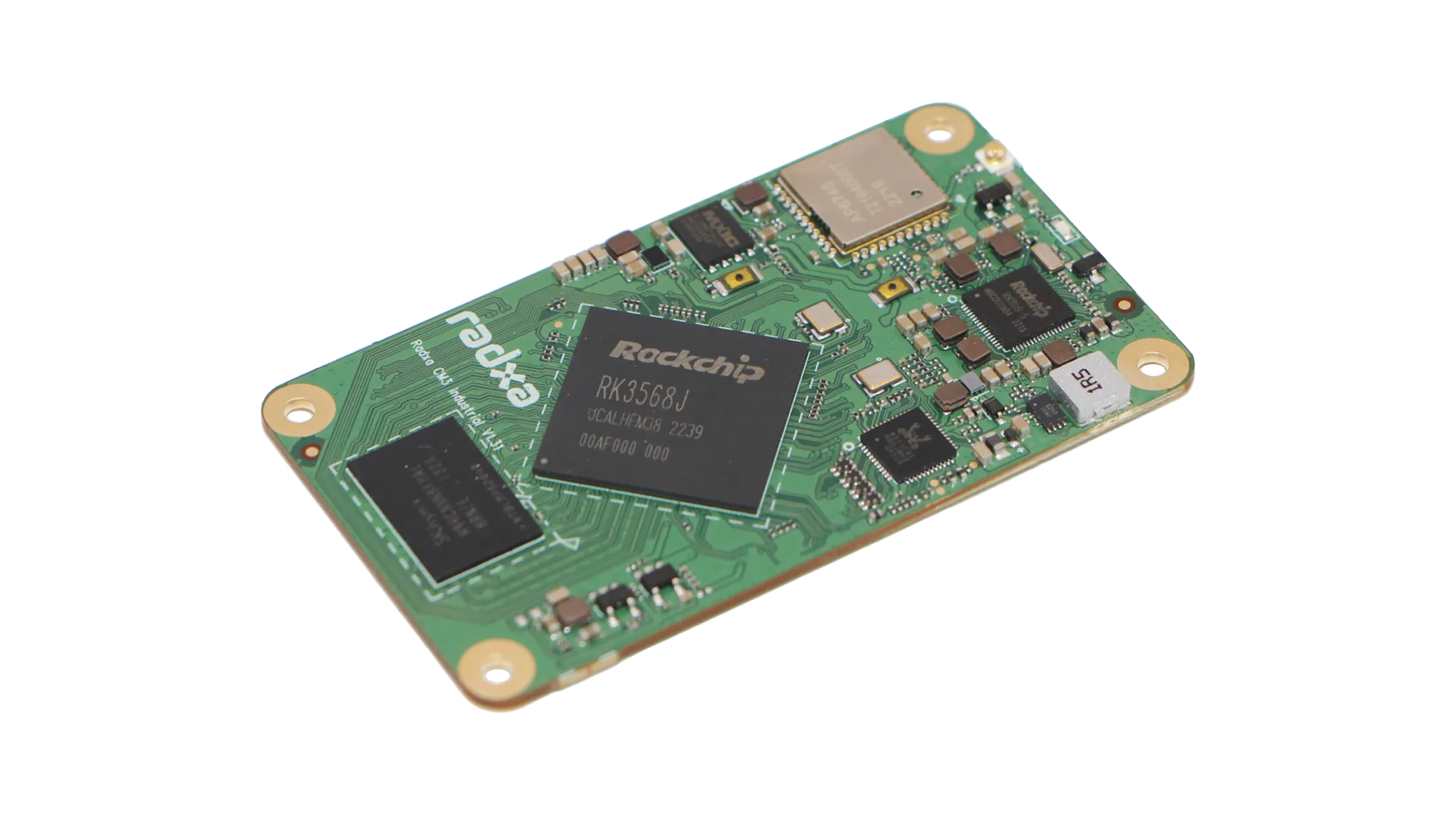

Especificações Técnicas

• SoC

  Rockchip RK3568(J)

• CPU

  Quad‑core Arm® Cortex™‑A55 (Armv8) 64‑bit @ 2.0GHz

• GPU

  Arm® Mali™ G52 GPU

  – OpenGL® ES 1.1 / 2.0 / 3.2

  – OpenCL™ 2.0

  – Vulkan® 1.1

• NPU

  1 TOPs @ INT8 / INT16 / FP16 / BFP16 MAC hybrid operation

  Support deep-learning frameworks: TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet

• RAM

  LPDDR4 Memory

• Storage

  Optional Onboard eMMC

  Supports SDMMC interface for data storage and OS booting using SD cards

• Multimedia

  H.265 / H.264 and VP9 video decoder up to 4K@60fps

  H.264 / H.265 video encoder up to 1080P@100fps

• Wireless

  Optional Wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless

  BT 5.0, BLE

  1x external antenna connector

• Ethernet

  1x Onboard Gigabit Ethernet PHY

  1x Gigabit Ethernet MAC

• USB

  2 × USB 2.0 Host

  1 x USB 3.0 Host

  1 x USB 3.0 OTG

• PCIe

  1 × PCIe 1‑lane Host, Gen 2 ( 5Gbps )

  1 x PCIe 2‑lane(1×2, 1×1+1×1) Host, Gen 3 (16Gbps)

• SATA

  3 x SATA ports

  – one shared with USB 3 HOST

  – one shared with PCIe

  – one shared with USB 3 OTG

• Display

  1x HDMI up to 4Kx2K@60fps

  1x eDP four lanes, 2.7Gps per lane

  2x MIPI DSI four lanes, 1.6Gbps per lane

  1x LVDS four lanes(muxed with MIPI DSI0)

• Camera

  1x 4-lane MIPI CSI RX or 2x 2-lane MIPI CSI RX

  1x 4-lane MIPI_D/C PHY RX

• Connectivity

  Up to 8x UART

  Up to 4x SPI

  Up to 2x CAN

  Up to 4x I2C

• Audio

  I2S

  PDM, support mic array

• Connector

  4x 100Pin 0.4mm pitch B2B connector

• Dimension

  70mm x 40mm

• Operation Temperature

  J0 model(RK3568): 0 ~ 50°C

  J1 model(RK3568J): ‑40 ~ 85°C

• Compliance Certification

  FCC / CE
